FRAME FLOOR 50

MOBILE FRAME SCREEN IN MODULAR DESIGN

WITH PLUG CONNECTION FOR A QUICK AND

COMFORTABLE ASSEMBLING



•  Aluminium frame, cross section of the profile 5 cm width and 3 cm depth,

black varnished.


•  Plug design consists of separate light aluminium bars, short single pieces.


•  Tensioning of the screen surface by press studs on the reverse of the

frame, that means the tension system is not visible to the viewer.


•  Perfect flatness of the screen surface.


•  Two legs are included in delivery.


•  Customized sizes, different types of screens surfaces on request.

Aluminium frame - 3 cm depth, black varnished

Tensioning of the screen surface by press studs on the reverse of the

frame

The frame system consists of

separate aluminium segments

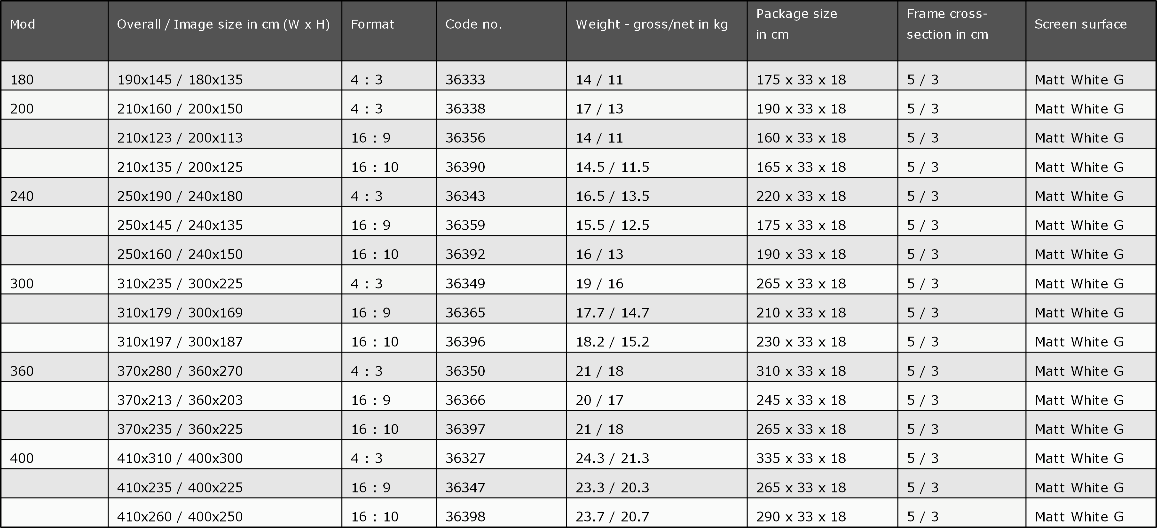

Mod

Overall / Image size in cm (W x H)

Format

Code no.

Weight - gross/net in kg

Package size

in cm

Frame cross-section in cm

Screen surface

180

190x145 / 180x135

4 : 3

36333

14 / 11

175 x 33 x 18

5 / 3

Blanco D

200

210x160 / 200x150

4 : 3

36338

17 / 13

190 x 33 x 18

5 / 3

Blanco D


210x123 / 200x113

16 : 9

36356

14 / 11

160 x 33 x 18

5 / 3

Blanco D


210x135 / 200x125

16 : 10

36390

14.5 / 11.5

165 x 33 x 18

5 / 3

Blanco D

240

250x190 / 240x180

4 : 3

36343

16.5 / 13.5

220 x 33 x 18

5 / 3

Blanco D


250x145 / 240x135

16 : 9

36359

15.5 / 12.5

175 x 33 x 18

5 / 3

Blanco D


250x160 / 240x150

16 : 10

36392

16 / 13

190 x 33 x 18

5 / 3

Blanco D

300

310x235 / 300x225

4 : 3

36349

19 / 16

265 x 33 x 18

5 / 3

Blanco D


310x179 / 300x169

16 : 9

36365

17.7 / 14.7

210 x 33 x 18

5 / 3

Blanco D


310x197 / 300x187

16 : 10

36396

18.2 / 15.2

230 x 33 x 18

5 / 3

Blanco D

360

370x280 / 360x270

4 : 3

36350

21 / 18

310 x 33 x 18

5 / 3

Blanco D


370x213 / 360x203

16 : 9

36366

20 / 17

245 x 33 x 18

5 / 3

Blanco D


370x235 / 360x225

16 : 10

36397

21 / 18

265 x 33 x 18

5 / 3

Blanco D

400

410x310 / 400x300

4 : 3

36327

24.3 / 21.3

335 x 33 x 18

5 / 3

Blanco D


410x235 / 400x225

16 : 9

36347

23.3 / 20.3

265 x 33 x 18

5 / 3

Blanco D


410x260 / 400x250

16 : 10

36398

23.7 / 20.7

290 x 33 x 18

5 / 3

Blanco D
