BIG FORMAT PROJECTION SCREENS
ROLLO JUMBO
THE STATIONARY MOTORIZED LARGE
SCREEN FOR TRADE SHOWS, CONFERENCE
• HOUSING MADE OF COATED SHEET STEEL,
1 MM THICK, WITH SQUARE CROSS SECTION.
COLOUR OF HOUSING AND BOTTOM WEIGHT
MOUNTS FOR WALL MOUNTING OPTIONALLY
• THE TRAPEZOIDAL BOTTOM WEIGHT
PROFILE CLOSES THE PROTECTIVE HOUSING
FLUSH WHEN ROLLING UP THE SCREEN
SURFACE; ESSENTIAL FOR INTEGRATION IN
SUSPENDED CEILINGS. THE BOTTOM WEIGHT
HALLS, THEATERS AND CINEMAS
PROFILE IS EQUIPPED WITH AN INTEGRATED
• EASY AND SAFE HANDLING DUE TO AN
PROFILE: WHITE, RAL 9003.
• MOUNTING BRACKETS FOR DIRECT CEILING
INSTALLATION ARE INCLUDED IN DELIVERY,
• WITH A STURDY MAINTENANCE-FREE
TUBULAR MOTOR AM60 - 230 VOLT/50 HZ
PROTECTIVE CLASS IP44, FOUR WIRE

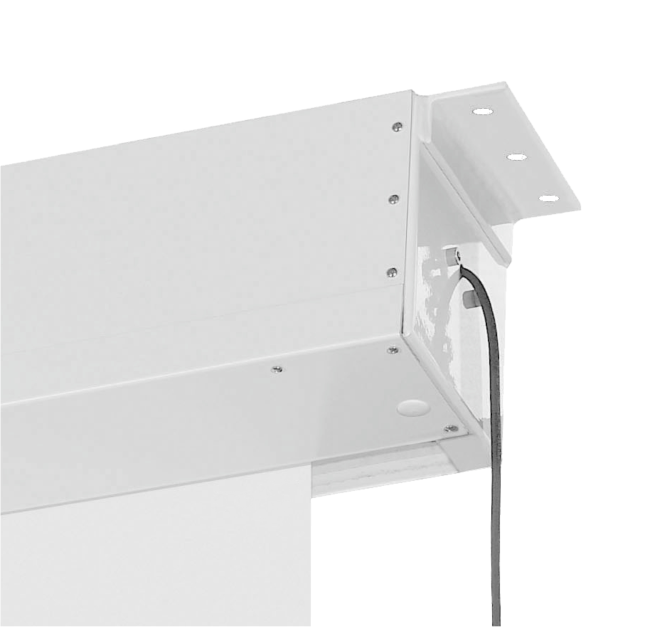

Metal construction of housing
coated with colour RAL-9003

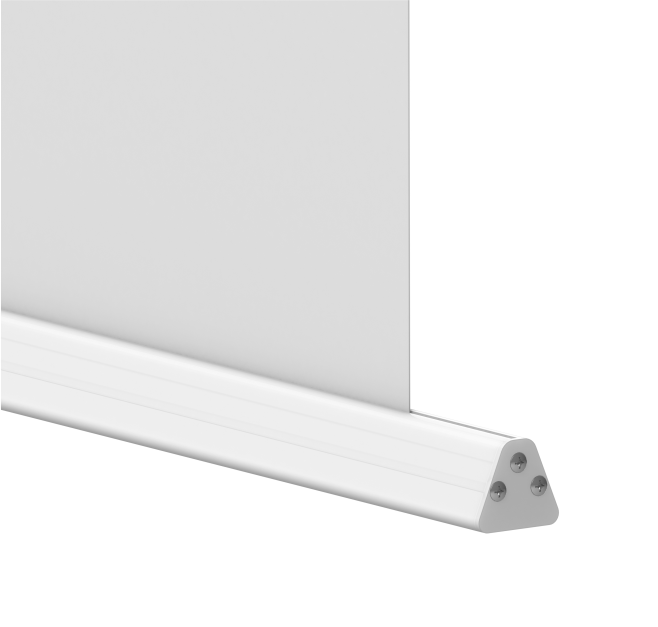

The trapezoidal bottom weight profile for
integration in suspended ceilings

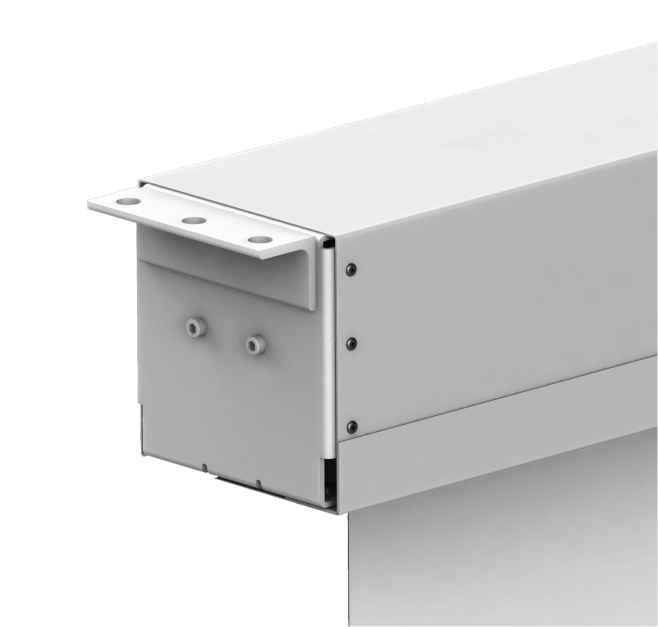

Mounting brackets for direct
ceiling installation
CONNECTION, BUILT-IN THERMAL
• BODY-SOUND-INSULATED, MAINTENANCE
FREE SPECIAL WINDING SHAFT, SECURED
AGAINST TORSION AT THE MOTOR SIDE
Copyright © 2018 JT Motors. All rights reserved.
• AUTOMATIC ELECTRICAL END SWITCH
LOW NOISE AND VIBRATION-FREE.
• MOTOR AND CABLE ENTRY AT THE RIGHT
FROM THE POINT OF VIEWER.
• IN-WALL SWITCH (UP/STOP/DOWN).
• INSTALLATION FRAME FOR INTEGRATION
IN SUSPENDED CEILINGS AS OPTIONAL.
• CUSTOMIZED SIZES, SPECIAL COLOUR OF
CASING, DIFFERENT TYPES OF SCREENS
