CINEFRAME 75

STATIONARY SCREEN WITH NEW INNOVATIVE

ALUMINIUM PROFILE - HIGHER VIEWING ANGLE /

EASY WALL MOUNTING / CONNECTION TECHNIQUE NOT VISIBLE TO THE VIEWER



•  Special shape of aluminium frame with bevel of inner edge for higher viewing

angle. Cross section of the profile 7.5 cm width and 3.5 cm depth, black varnished

with color tone RAL-9005.


•  Light aluminium construction with 4 mounting points for all sizes of projection

screen frame.


•  The frame system consists of separate aluminium segments, which are joined

by means of connectors and are secured by screws.


•  Tensioning of the screen surface by press studs on the reverse of the frame,

that means the tension system is not visible to the viewer.


•  Perfect flatness of the screen surface.


•  Customized sizes, special colour of frame, different types of screens

surfaces on request.

Black varnished aluminium frame with

matt tone RAL-9005 for eliminate of

light reflections

Innovative system of mounting for easy

wall mounting (connection technique

not visible to the viewer)

Special shape of aluminium frame with

bevel of inner edge for higher viewing

angle up to 30°

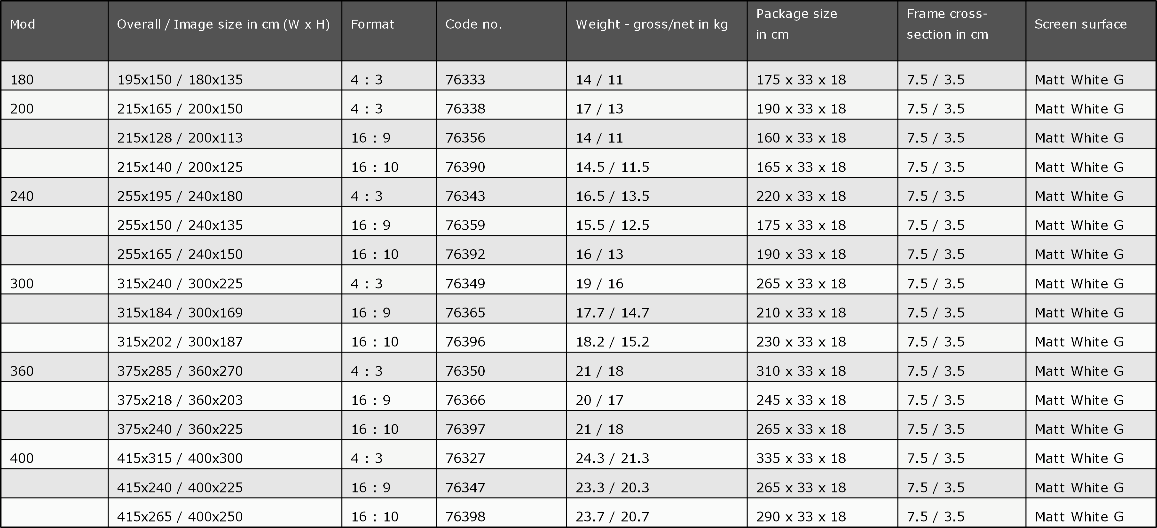

Mod

Overall / Image size in cm (W x H)

Format

Code no.

Weight - gross/net in kg

Package size

in cm

Frame cross-section in cm

Screen surface

180

195x150 / 180x135

4 : 3

76333

14 / 11

175 x 33 x 18

7.5 / 3.5

Blanco D

200

215x165 / 200x150

4 : 3

76338

17 / 13

190 x 33 x 18

7.5 / 3.5

Blanco D


215x128 / 200x113

16 : 9

76356

14 / 11

160 x 33 x 18

7.5 / 3.5

Blanco D


215x140 / 200x125

16 : 10

76390

14.5 / 11.5

165 x 33 x 18

7.5 / 3.5

Blanco D

240

255x195 / 240x180

4 : 3

76343

16.5 / 13.5

220 x 33 x 18

7.5 / 3.5

Blanco D


255x150 / 240x135

16 : 9

76359

15.5 / 12.5

175 x 33 x 18

7.5 / 3.5

Blanco D


255x165 / 240x150

16 : 10

76392

16 / 13

190 x 33 x 18

7.5 / 3.5

Blanco D

300

315x240 / 300x225

4 : 3

76349

19 / 16

265 x 33 x 18

7.5 / 3.5

Blanco D


315x184 / 300x169

16 : 9

76365

17.7 / 14.7

210 x 33 x 18

7.5 / 3.5

Blanco D


315x202 / 300x187

16 : 10

76396

18.2 / 15.2

230 x 33 x 18

7.5 / 3.5

Blanco D

360

375x285 / 360x270

4 : 3

76350

21 / 18

310 x 33 x 18

7.5 / 3.5

Blanco D


375x218 / 360x203

16 : 9

76366

20 / 17

245 x 33 x 18

7.5 / 3.5

Blanco D


375x240 / 360x225

16 : 10

76397

21 / 18

265 x 33 x 18

7.5 / 3.5

Blanco D

400

415x315 / 400x300

4 : 3

76327

24.3 / 21.3

335 x 33 x 18

7.5 / 3.5

Blanco D


415x240 / 400x225

16 : 9

76347

23.3 / 20.3

265 x 33 x 18

7.5 / 3.5

Blanco D


415x265 / 400x250

16 : 10

76398

23.7 / 20.7

290 x 33 x 18

7.5 / 3.5

Blanco D

Documents for download  :



Cineframe 75 - presentation sheet (EN2).pdf

Presentation sheet



Cineframe 75 - technical sheet (EN2).pdf

Technical sheet



Cineframe 75 - návod (3).pdf

Mounting instructions



Usable screen surfaces :



BLANCO_RL.pdf

Blanco RL - technical data



BLANCO_SONORA_MICRO.pdf

Blanco Sonora Micro - technical data



DURABLA_REGENT.pdf

Durabla Regent - technical data



SONORA_REGENT.pdf

Sonora Regent - technical data



TRANSLUCENT_DF.pdf

Translucent DF - technical data



TRANSLUCENT_HG.pdf

Translucent HG - technical data



BLANCO D.pdf

Blanco D - technical data



SONORA_REGENT_3D_SILVER.pdf

Sonora Regent 3D Silver - technical data
